CD74TBR/LC-15~20E (with pulser)

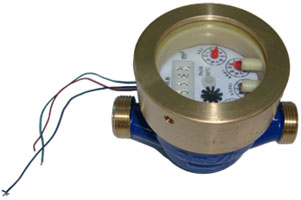

Model CD74TBR/LC-E is an inferential, single-jet, straight reading type meter for cold water, and it is suitable for domestic use. Brass body and adopt all antiseptic materials, no leak It has the pulse device, and the measured water volume of per pulse may be 1l/pulse, 10 l/pulse or 100l/pulse.

WORKING CONDITION
*The max. admissible water pressure:1.6MPa(16bar)
*Water temperature:not more than 50℃,

Maximum permissible error:
Between qt (included) and qs is ±2%;
Between qmin and qt (excluded) is ±5%.
NOTE: The technical data conform to ISO4064 standard, class B.

FLOW-ERROR CURVE

SPECIFICATION AND OVERALL DIMENSIONS
Description

Unit

Hydraulic data and dimensions

Nominal size

mm

15

20

25

inch

1/2

3/4

1

Overload flow-rate (qs)

m3/h

3

5

7

Permanent flow-rate (qp)

m3/h

1.5

2.5

3.5

Transitional flow-rate (qt)

m3/h

0.12

0.2

0.28

Minimum flow-rate (qmin)

m3/h

0.03

0.05

0.07

Max. reading

m3

99999.9999

99999.9999

99999.9999

Min. reading

m3

0.00005

0.00005

0.00005

Max. working pressure

MPa

1.6

1.6

1.6

ΔP at the qs

MPa

≤0.1

≤0.1

≤0.1

L

mm

110

130

160

I

mm

190

230

280

H

mm

82

82

82

B

mm

75.6

88.7

88.7

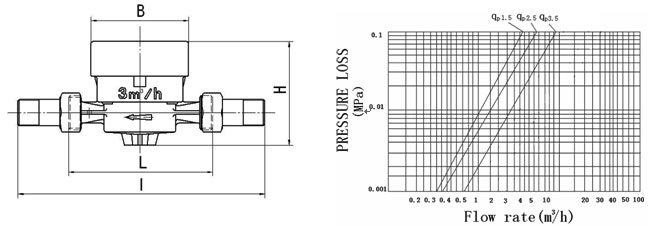

OVERALL DIMENSIONS                                                                          PRESSURE LOSS CURVE
