Multi-jet

DS04TBR/LC-15~50E (with pulser)


APPLICATION: MEASURING THE TOTAL VOLUME OF COLD POTABLE WATER PASSING THROUGH THE METER,IT'S SUITABLE FOR DOMESTIC USE.
OPERATING CONDITION:
WATER TEMP.: UP TO 50℃
THE MAX.ADMISSIBLE WATER PRESSURE: 1.6MPa (16bar)
SPECIALITY:
* Internal filter of adequate filtering section.
* Large measuring range and high flow accuracy
* Low start-up flow, high sensitivity, long life of service time.
*Be equipped with the pulse device (the measured water volume of per pulse may be 0.01m3/pulse and 0.1m3/pulse).
Maximum permissible error:
Between qt (included) and qs is ±2%;
Between qmin and qt (excluded) is ±5%.
NOTE: The technical data conform to ISO4064 standard, class B.
FLOW-ERROR CURVE

SPECIFICATION AND OVERAL DIMENSIONS
Description
Unit

Hydraulic data and dimensions

Nominal size
mm

15

20

25

32

40

50

inch

1/2

3/4

1

11/4

11/2

2

Overload flow-rate (qs)
m3/h

3

5

7

12

20

30

Permanent flow-rate (qp)
m3/h

1.5

2.5

3.5

6

10

15

Transitional flow-rate (qt)
l/h

120

200

280

480

800

3000

Minimum flow-rate (qmin)
l/h

30

50

70

120

200

450

Min. reading
l

0.05

0.05

0.05

0.05

0.05

0.05

Max. reading
m3

99999

99999

99999

99999

999999

999999

Nominal pressure
MPa

1.6

1.6

1.6

1.6

1.6

1.6

ΔP at the qs
MPa

0.08

0.09

0.08

0.09

0.085

0.085

L
mm

145

190

260

260

245

300

165

300

I
mm

225

292

380

384

373

428

245

428

H
mm

123

123

128

128

182

182

h
mm

27

27

29

29

65

65

B
mm

90

90

90

9

130

130

Weight
Without connections
Kg

1.09

1.24

1.74

2.07

3.40

5.30

1.15

3.60

With connections

1.22

1.51

2.17

2.79

4.35

6.60

1.32

4.55

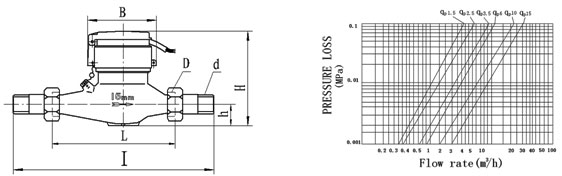

OVERALL DIMENSIONS                                                               PRESSURE LOSS CURVE
