Multi-jet

DS78TRP-15~20E/S (plastic body)


DS78TRP-E/S is a multi-jet meter for cold water which can be used and read with any type of water even if it is extremely hard, scaling or contains suspended particles. Because the number wheels are isolated in a transparent sealed capsule filled with a special liquid, and equipped with a pressure compensating device and an anti-fogging system for the glass. The wheels sealed in this way means that this part never can contact with the water flowing through the meter and will assure the clear and reliable reading of the meter in all conditions.

SPECIALITY:
* Internal filter of adequate filtering section.
* Body and internal mechanisms are made from wear-resistant, waterproof, antimagnetic and anti-scaling plastic material.
* Mechanical transmission, not effected by external magnetic fields or ferrous particles in the water.
* All the characteristics mentioned above make the model meter which combines the advantages of both the traditional wet dial meters as well as those of dry dial types without the well known disadvantages of both.

WORKING CONDITION:
* The max. admissible pressure: 1.6MPa(16bar)
* Resisting water temperature of  50℃

Maximum permissible error:
Between qt (included) and qs is ±2%;
Between qmin and qt (excluded) is ±5%.
NOTE: The technical data conform to ISO4064 standard, class B.
FLOW-ERROR CURVE

SPECIFICATION AND OVERALL DIMENSIONS
Description
Unit

Hydraulic data and dimensions

Nominal size
mm

15

20

inch

1/2

3/4

Overload flow-rate (qs)
m3/h

3

5

Permanent flow-rate (qp)
m3/h

1.5

2.5

Transitional flow-rate (qt)
l/h

120

200

Minimum flow-rate (qmin)
l/h

30

50

Min. reading
l

0.05

0.05

Max. reading
m3

99999.9999

99999.9999

Nominal pressure
MPa

1.6

1.6

ΔP at the qs
MPa

≤0.10

≤0.10

L
mm

165

190

I
mm

245

290

H
mm

122

122

B
mm

100

100

G
Inch

G3/4B

G1B

R
Inch

R1/2

R3/4

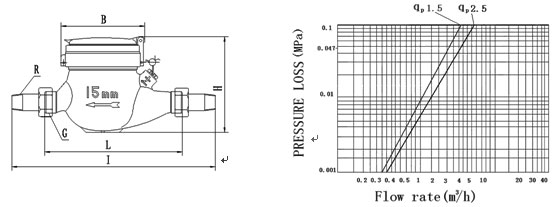

OVERALL DIMENSIONS                                                             PRESSURE LOSS CURVE
